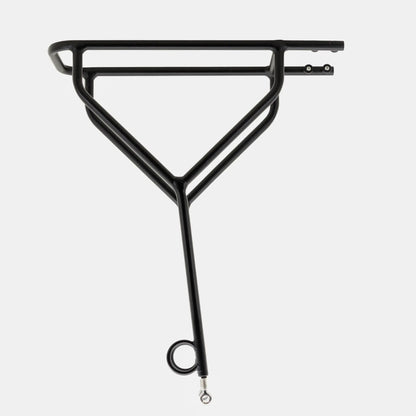

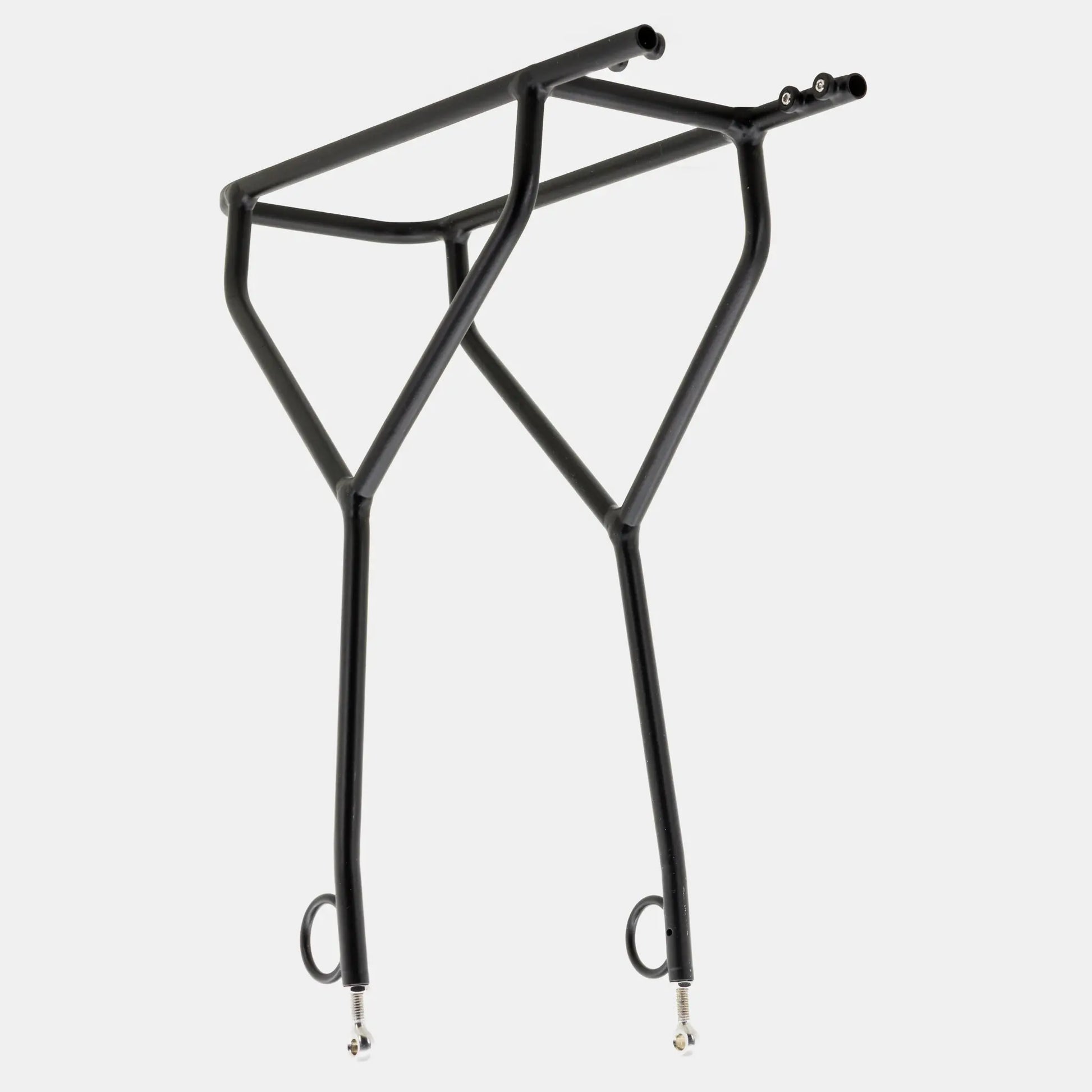

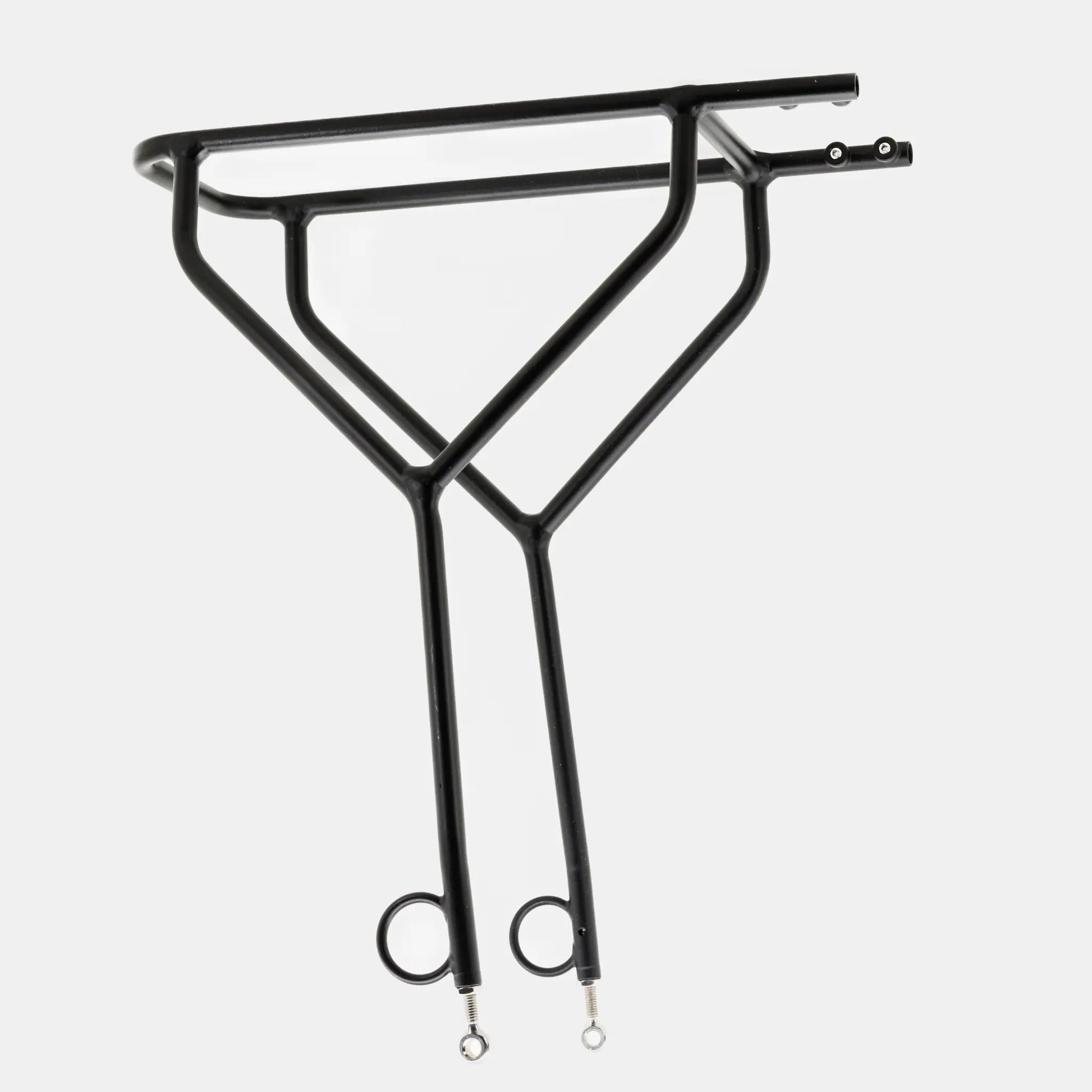

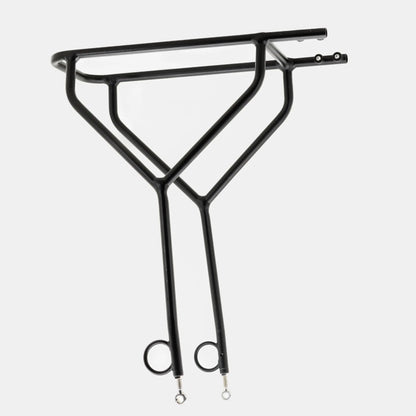

Y-Rack

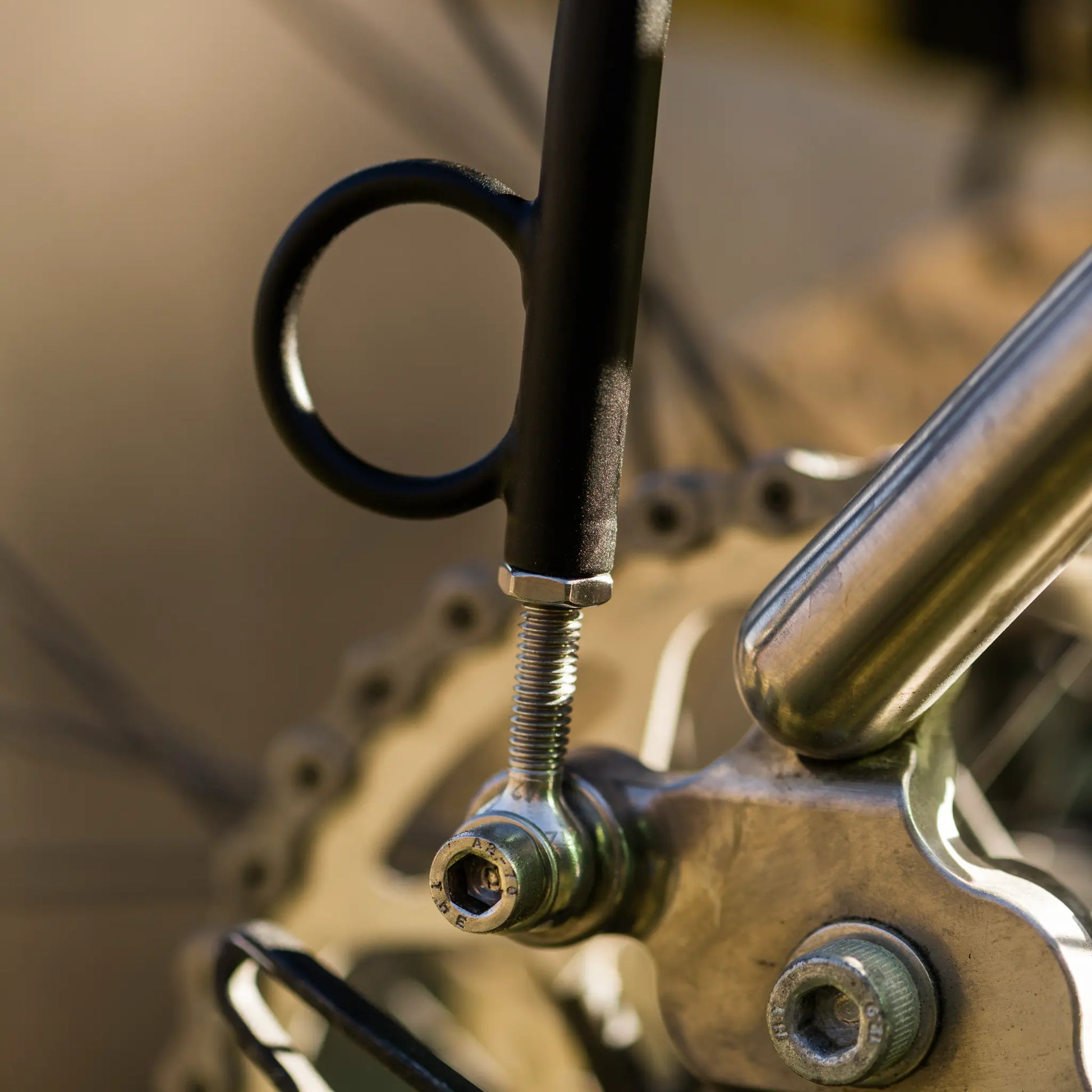

• Height adjustment ± 30 mm
• High torsional stiffness
• Side threaded eyelets for bottle or accessory mounts
• Adjustable aluminum mounting struts
• Precision steel tube, stressed parts made of stainless steel
• Powder Coating
• Cavity Sealing
• Payload 22 kg/48 lbs (tested with 36 kg/79 lbs)
• Up to 29 x 3.0" (75-622) tire width
• Front and rear rack
• All screws made of A2 stainless steel
• Rear Rack thru-axle kit and mudguard available as add-ons
• Handmade in Switzerland

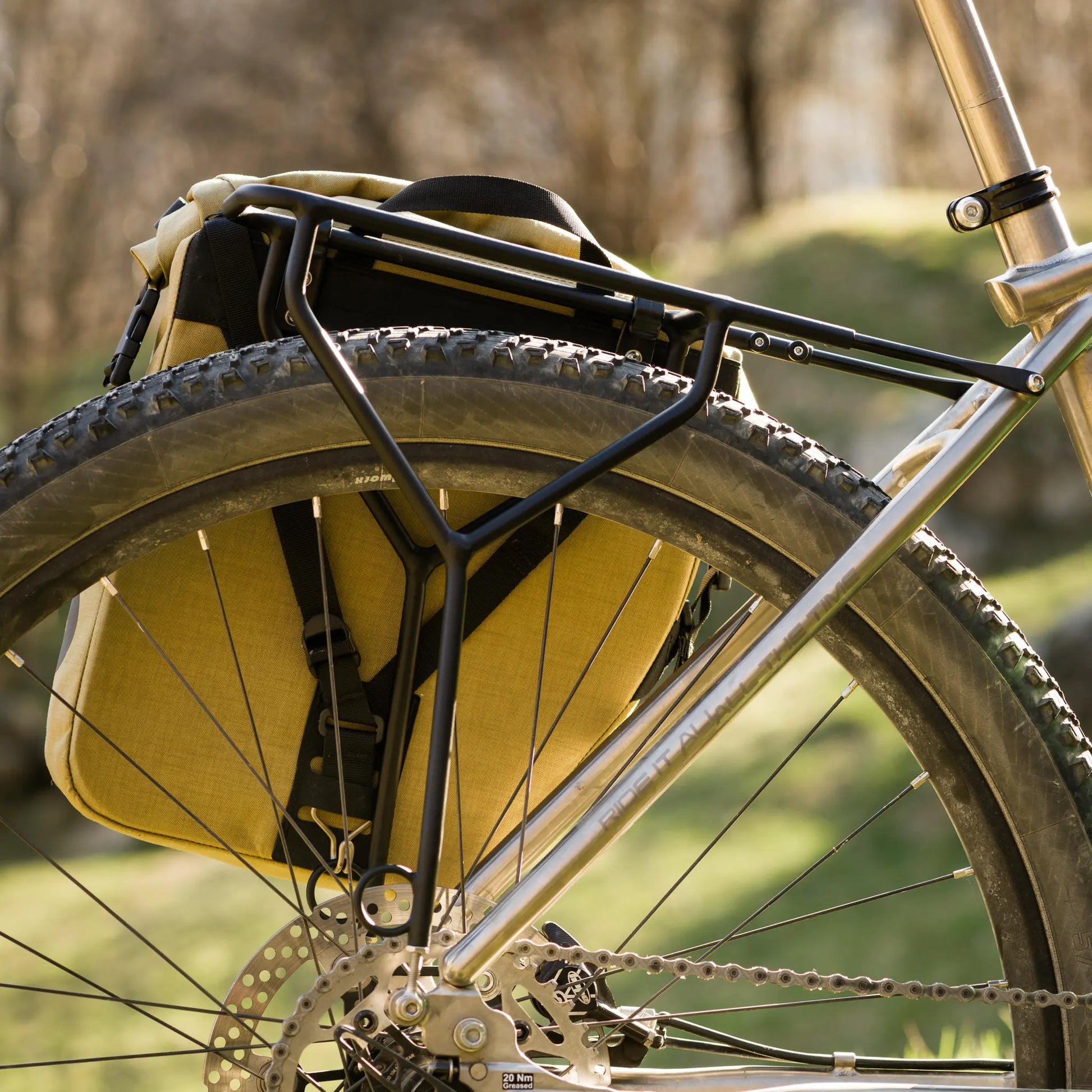

Craftsmanship & Materials – The Y-Rack is the perfect complement to Speck Gear's bikepacking bags. The rack is manufactured from precision steel tubing in a small factory in Zurich and is designed to withstand the highest loads while remaining lightweight. The design is pared down to the essentials, while the innovative, adjustable mounting system is highly stable. The rack is made of stainless chrome steel in stress areas and has a durable powder-coated finish. Thanks to the Y-Rack's integrated height adjustment, the center of gravity of the luggage can be optimally adjusted. There are also two threaded eyelets on the side struts for bottle or accessory mounts. These are also perfectly suited for the KLICKfix mount included in our Mini-Pack 06.

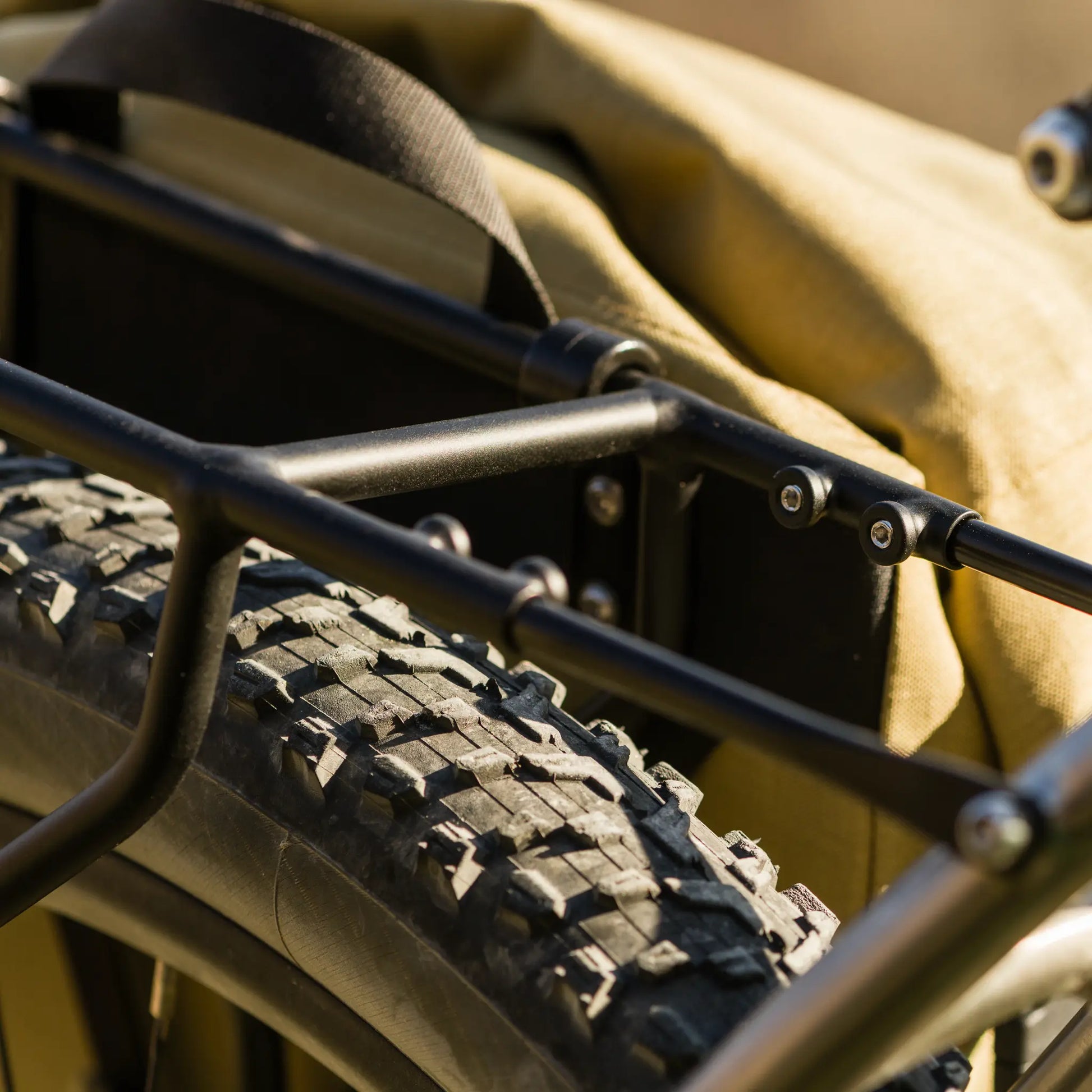

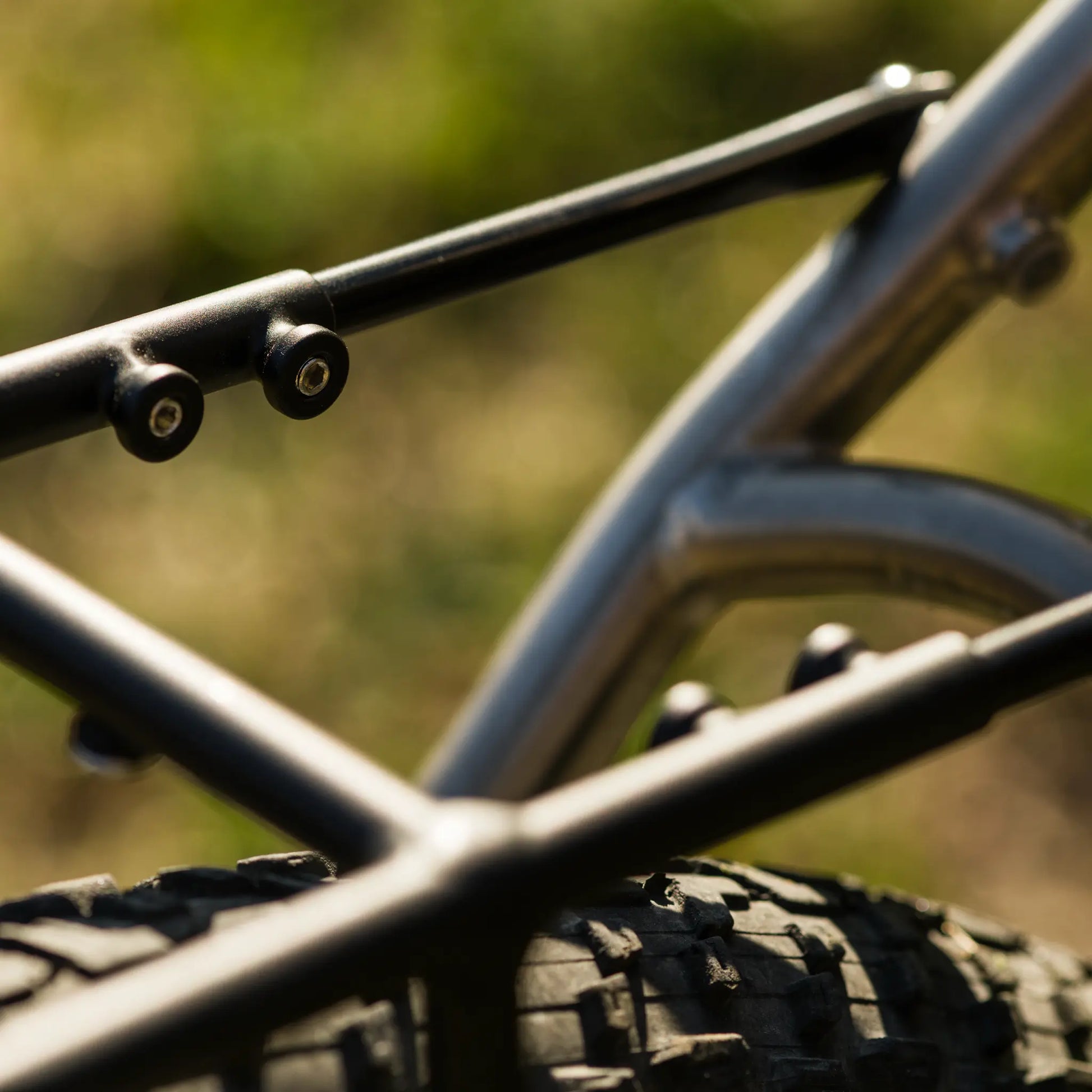

Alignment & Center of Gravity – Using a spirit level, you can adjust the angle of the rack platform to a maximum of -12° or align it parallel to the ground. Then bend the aluminum mounting struts into the desired shape for attachment to the seat stays.

Installation & Fork Mounting – To mount the Y-Rack on a fork, the fork must be equipped with threaded rack mounts near the dropouts and a central steerer tube hole. All Tubus/Racktime accessories are also compatible with Speck Gear racks. Your local bike shop will be happy to assist you with installation. Any questions? Go directly to the FAQ.

- Article on BIKEPACKING.COM
- Review of TRIANGLE OF GRAVEL
- Review of TORSTEN FRANK
- Article on BATTICUORE.CH

The Y-Rack is designed to be compatible with most bicycle frames that have the appropriate mounting points. Make sure your frame is suitable for installation. If you are unsure, please contact your bicycle manufacturer or take it to your bike shop to check compatibility. Your frame should be equipped with rack eyelets on the dropouts and upper seat stays. The Y-Rack is designed to mount on frames with dropouts that are 150 to 180 mm (5.9–7.1") wide.

Some frames do not have threaded eyelets on the dropouts and/or seat stays. In this case, you can use our seatstay pucks, the Tubus thru-axle adapter, or a seatpost clamp with a rack mount (such as the Bontrager Clamp-Fix), as well as the Tubus clamp adapter set. The latter is suitable exclusively for metal frames. The versions with seatstay pucks or thru-axle adapters and a rack mount on the seatpost clamp are also suitable for carbon frames, provided that the respective frame specifications are observed. On full-suspension bikes, the seatstay pucks can be used on the swingarm at any mounting point. Other manufacturers that offer compatible thru-axle adapters (M5 internal thread) and mounting pucks include Topeak (UDH-compatible and Old Man Mountain/Robert Axles. To mount the rack on the axle, you’ll need our Y-Rack thru-axle kit with the longer eye bolts. If you have any questions, your trusted bike shop can certainly help you.

Note: All Tubus/Racktime accessories also work with Speck Gear racks.

Color: Matte black
Size: 12 x 31 x h34.5–37.5 cm (width x length x height)
Tube diameter: 10 mm
Weight: 465 g (additional fastening material 83 g)
Payload: 22 kg/48 lbs (tested with 36 kg/79 lbs)
Threaded eyelets: Maximum load with two screws 3 kg
Tire width: up to 29 x 3.0" (75-622) without mudguard
Wheelbase: 150–180 mm (5.9–7.1")
Mudguard assembly: possible

Download: Y-Rack assembly instructions

• Risk of injury due to incorrectly fitted products: Before riding, check that the product is securely fastened. Check the distance and tightness of the screw connections after assembly and before each ride. Attach the product only to the designated mounting points and eyelets.
• Risk of injury due to damage to the pannier rack during passenger transport and trailer attachment: Do not transport persons or attach a trailer to the pannier rack.
• Risk of injury due to material breakage from overloading: Do not exceed the maximum load of 22 kg total and a maximum of 11 kg per side. If necessary, weigh the load to ensure that the maximum load is not exceeded.

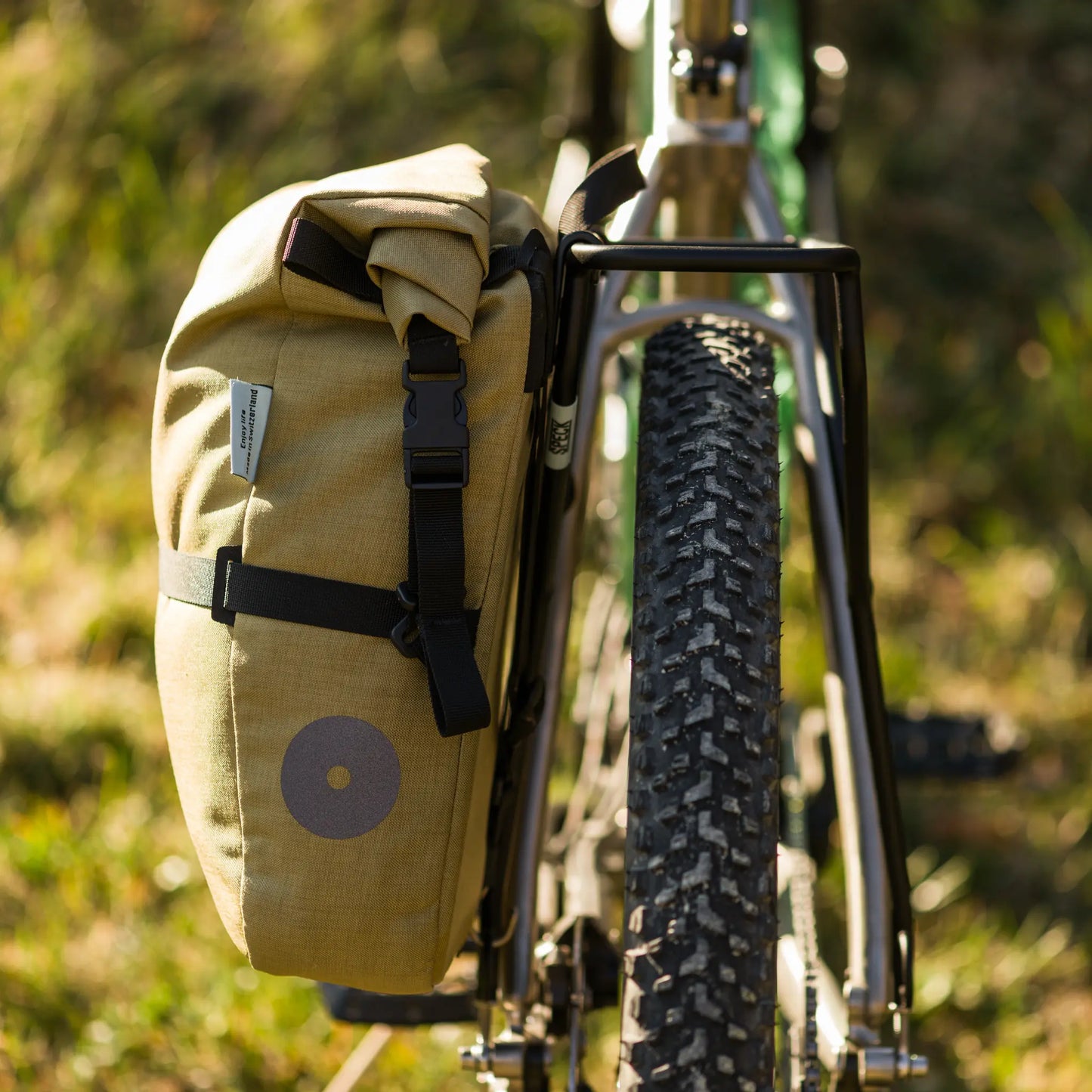

• Risk of injury due to insufficient clearance between pannier rack and tires: The clearance between the pannier rack and tires must be at least 20 mm.
• Risk of injury due to damage to carbon frames: Do not mount the product on carbon frames unless explicitly approved by the frame manufacturer.
• Disclaimer Regarding Improper Use: We assume no liability for damages resulting from exceeding the weight limit, improper installation, or improper use. As the user, you are personally responsible for ensuring safe installation and proper use.

Manufacturer: Speck Gear, Via Carnella 3, CH-7610 Soglio, speckgear.com

EU Rep: EAS Europe OU, Mustamäe tee 50, EE-10621 Tallinn, easproject.com

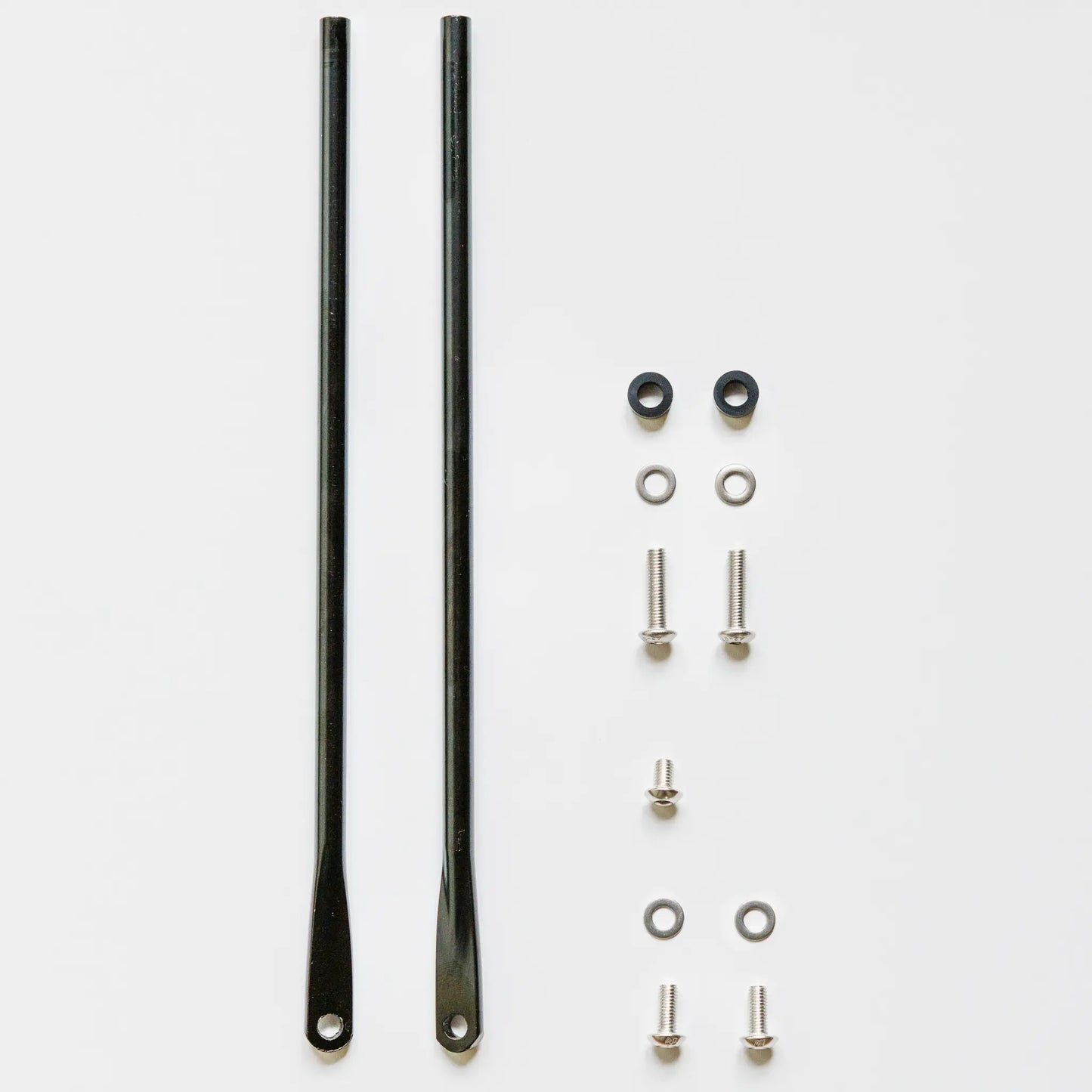

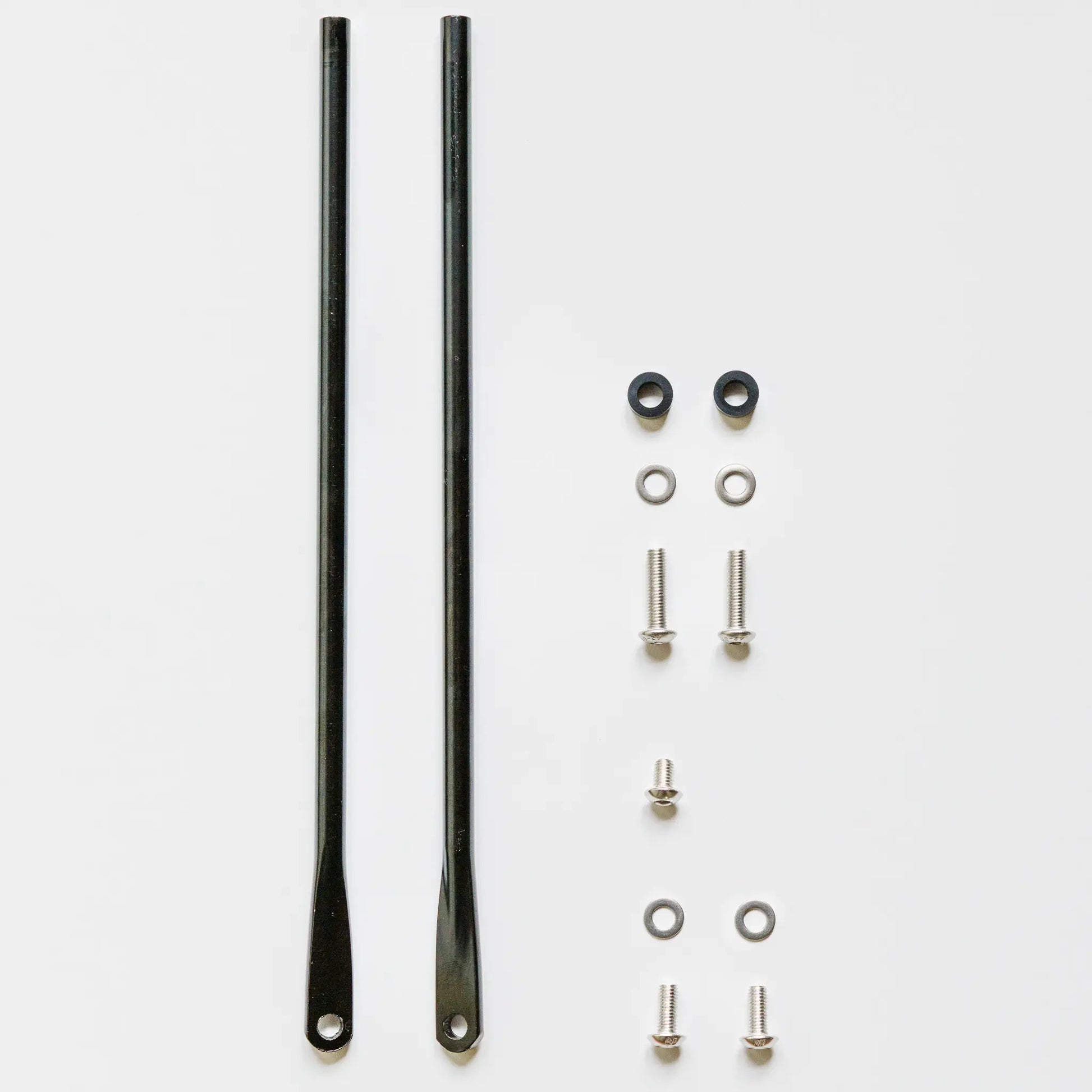

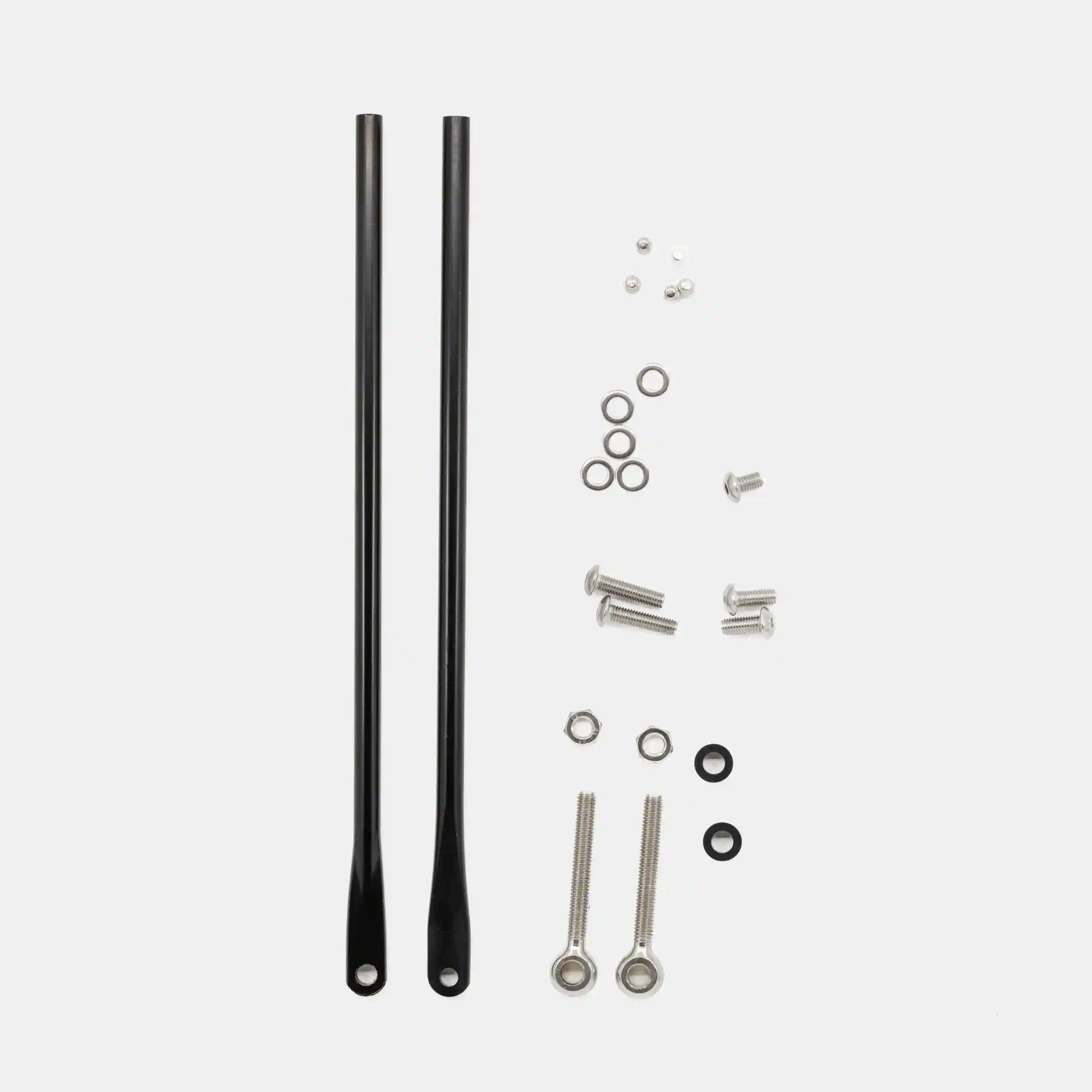

• Rack
• 2 pieces of aluminum mounting struts, length 240 mm
• 4 pieces of stainless steel grub screws, M5 x 6 mm
• 2 pieces of stainless steel pan head screw, M5 x 12 mm
• 4 pieces of stainless steel washers, M5
• 2 pieces of stainless steel pan head screw, M5 x 20 mm
• 2 pieces ABS spacers, 5 mm
• 2 pieces stainless steel eyebolts, M6 x 50 mm
• 2 pieces stainless steel lock nuts, M6
• 5 piece stainless steel pan head screw, M5 x 8 mm
• Assembly instructions
• Extended warranty after product registration
• Speck Gear Sticker
