Y-Rack

Details

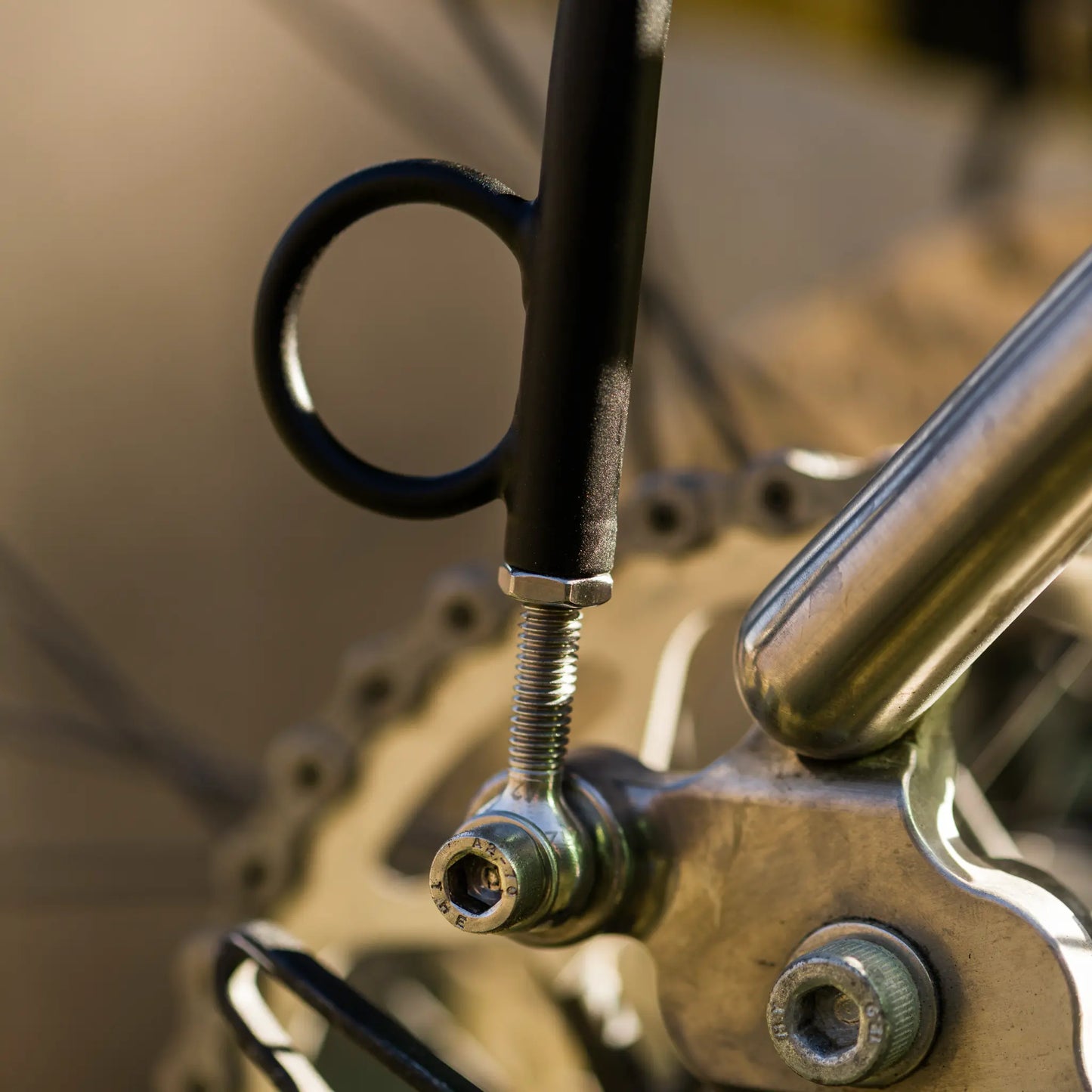

Height adjustment ± 30 mm
High torsional stiffness
Side threaded eyelets for bottle or accessory mounts

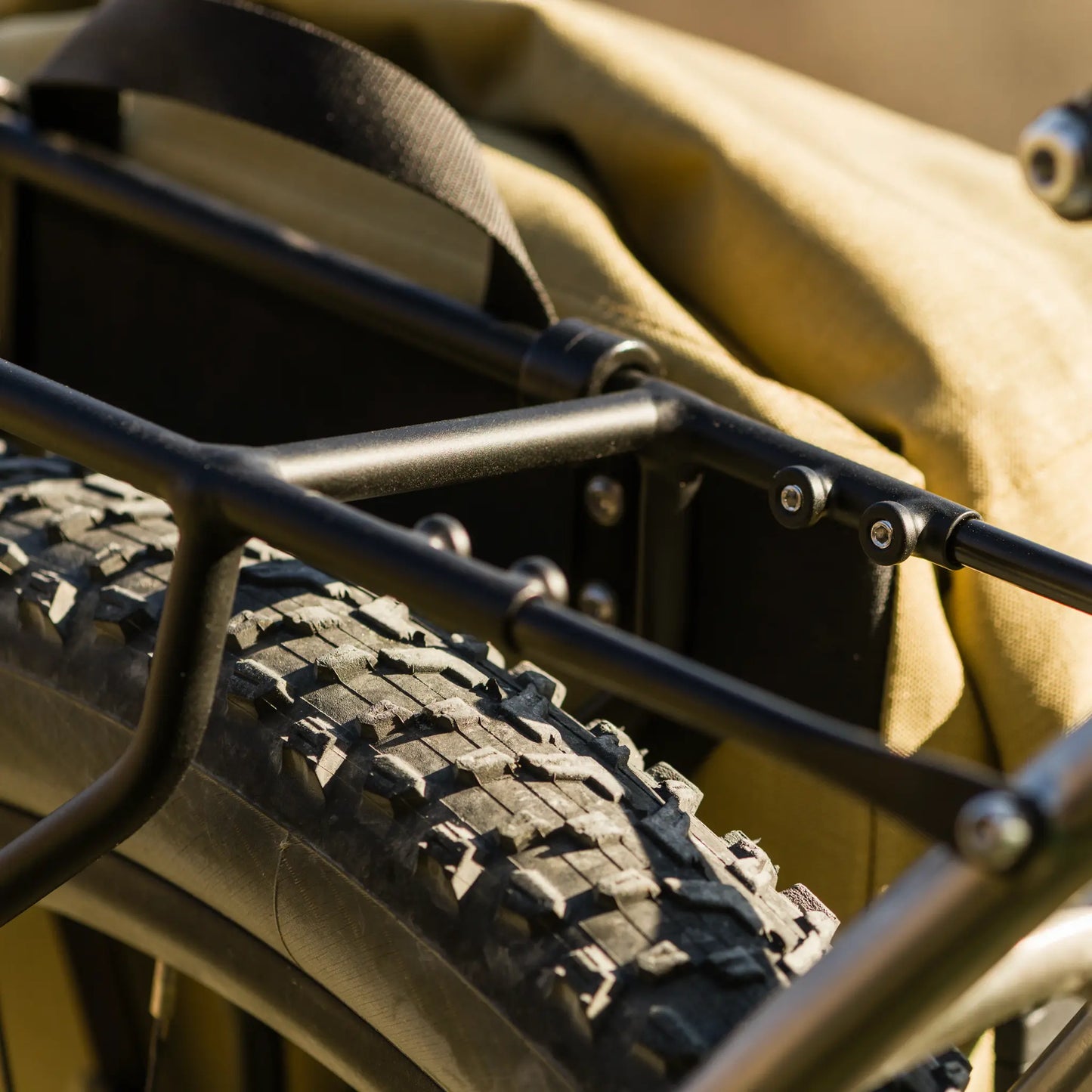

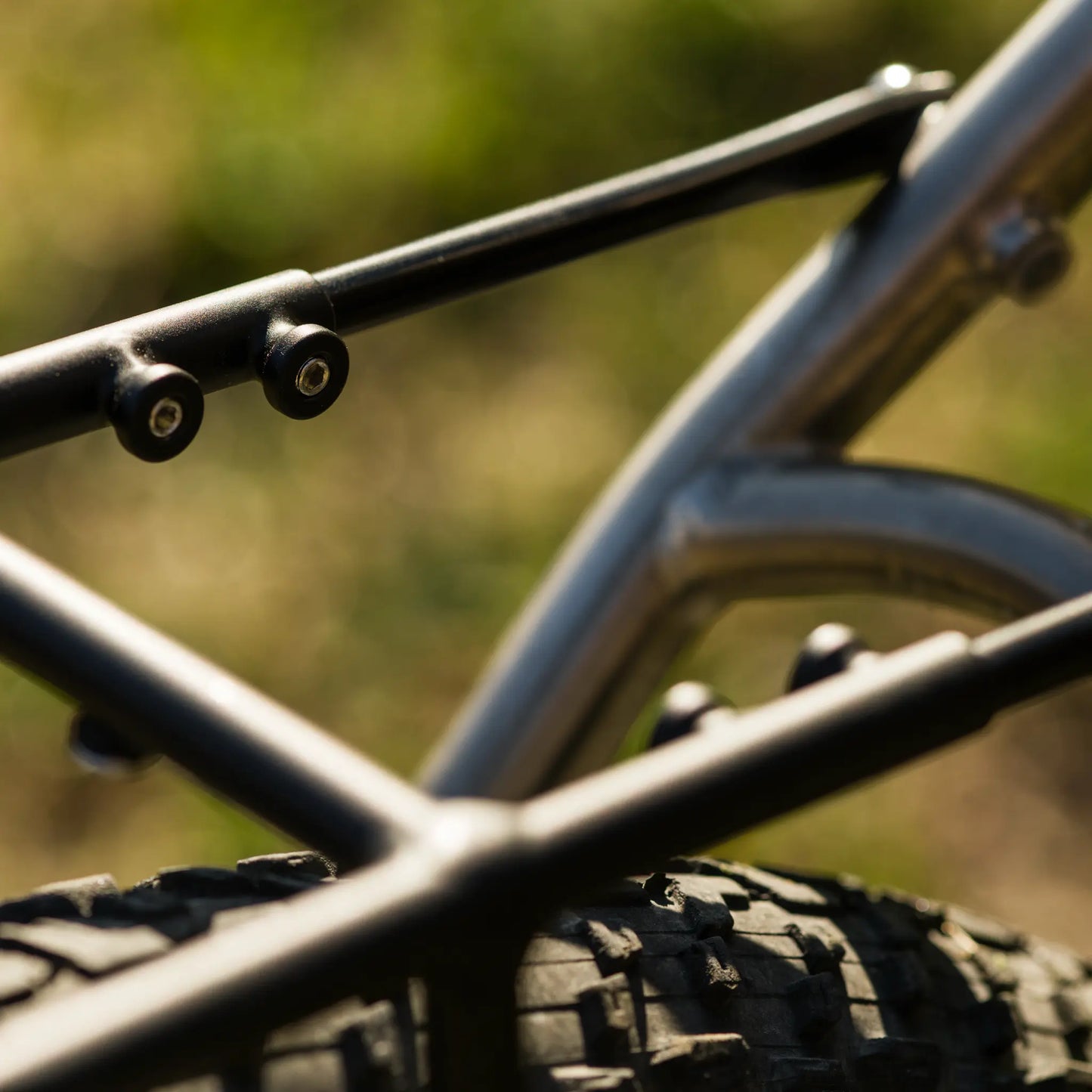

Adjustable aluminum seatpost stays
Precision steel tube, stressed parts made of stainless steel
Powder Coating
Cavity Sealing
Payload 22 kg/48 lbs (tested with 36 kg/79 lbs)

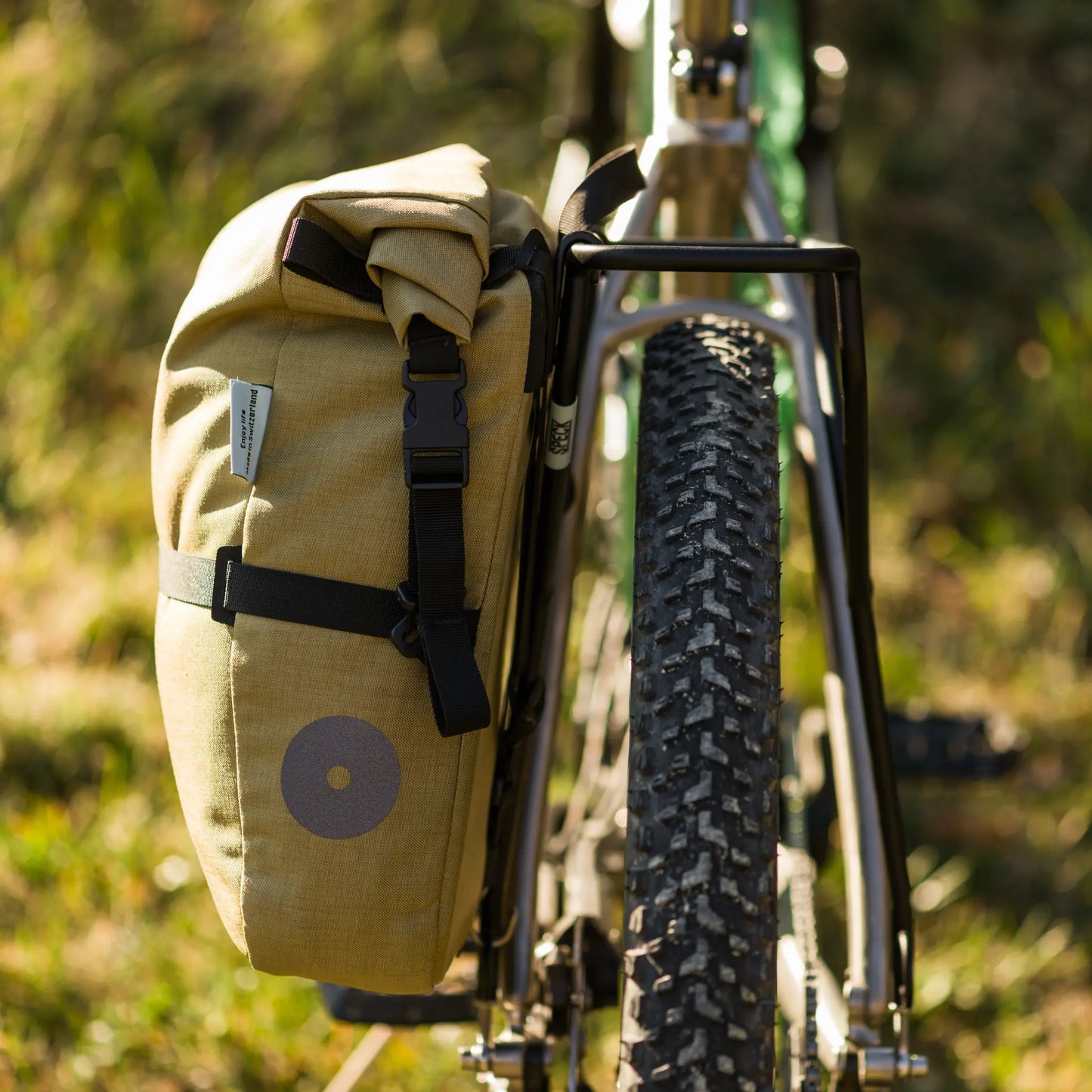

Up to 29 x 3.0" (75-622) tire width
Front and rear rack
All screws made of A2 stainless steel
Handmade in Switzerland

Description

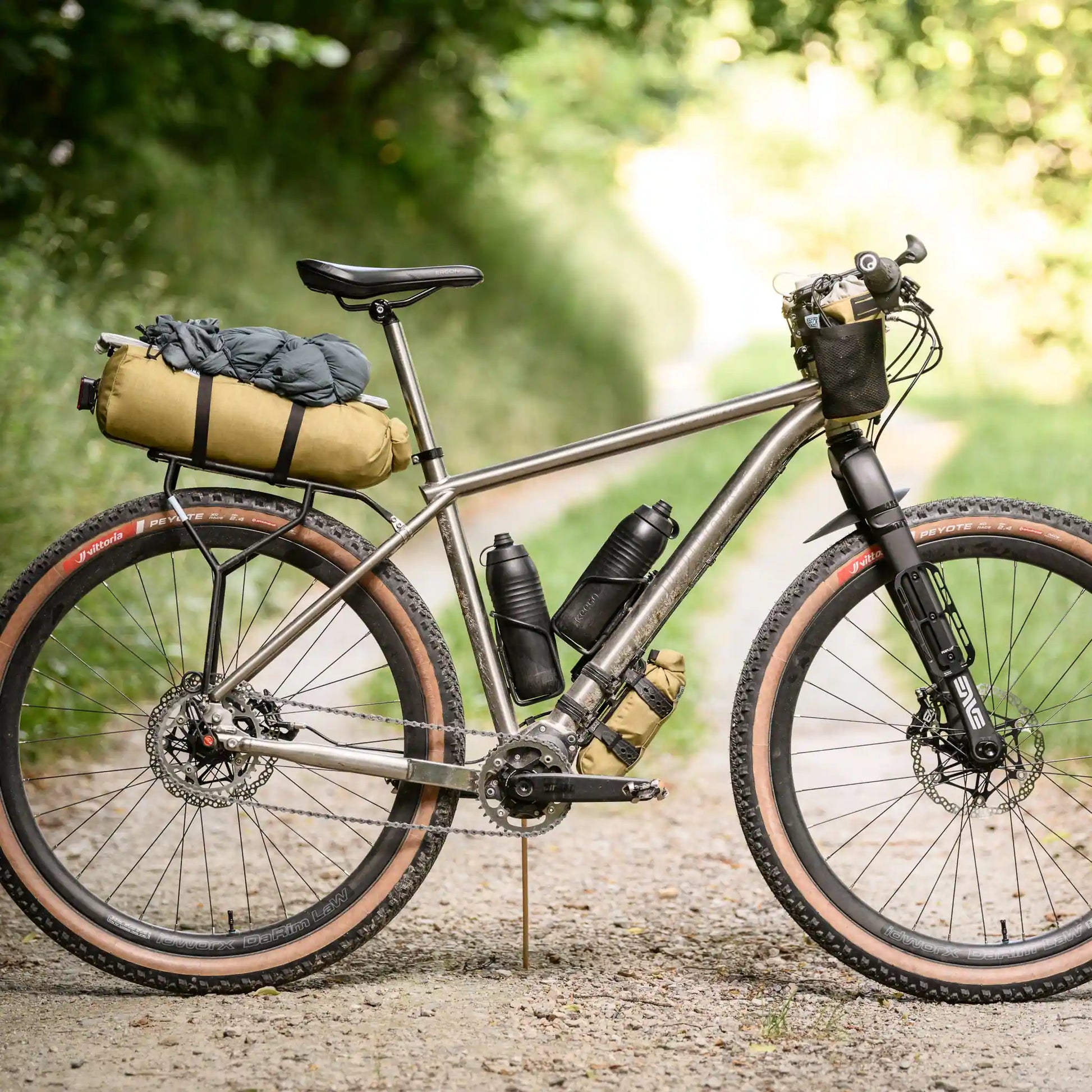

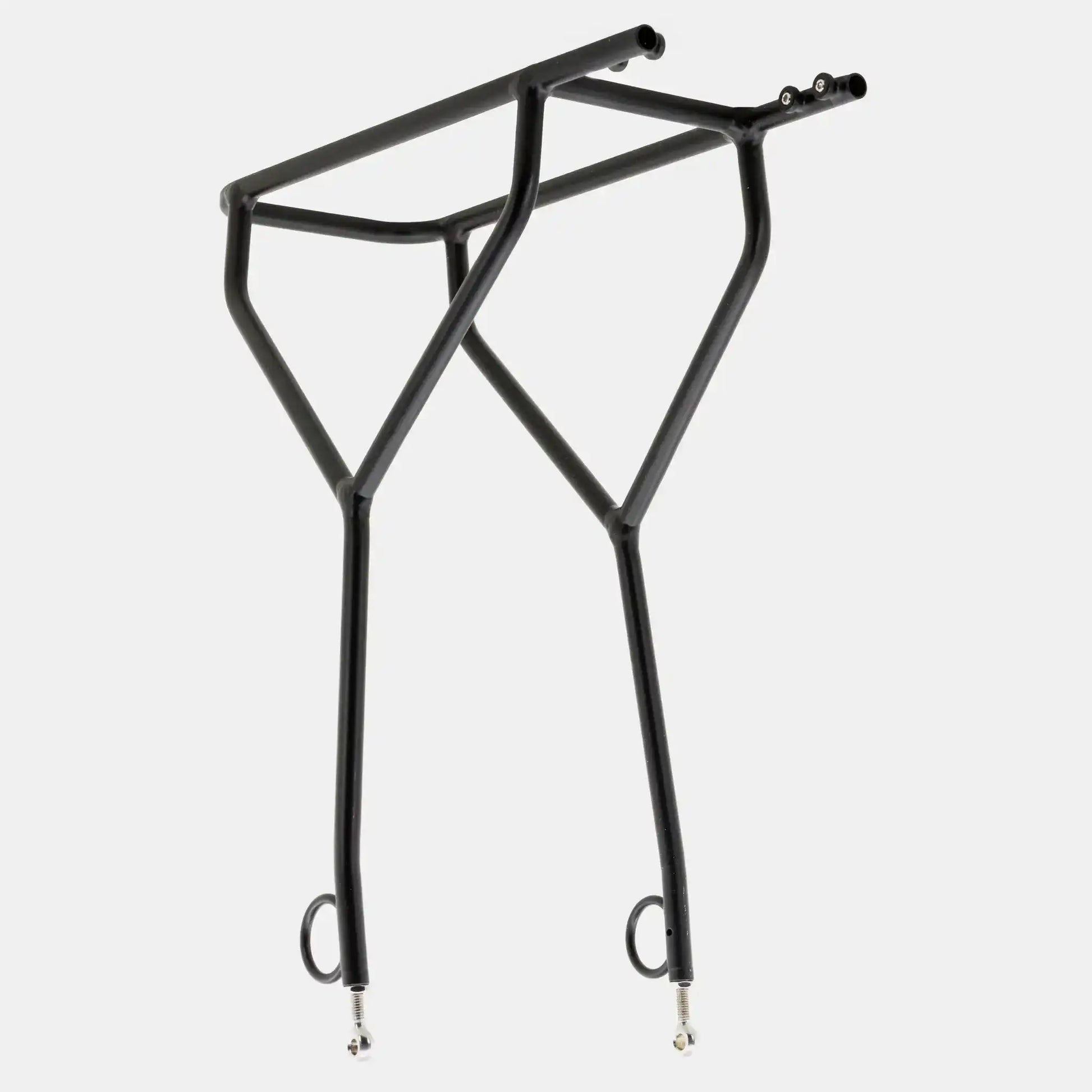

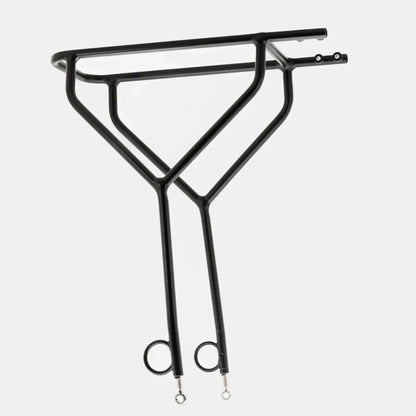

Craftsmanship & Materials - The Y-Rack is the perfect complement to Speck Gear's bikepacking bags. The rack is manufactured from precision steel tubing in a small factory in Zurich and is designed to withstand the highest loads while remaining lightweight. The design is pared down to the essentials, while the innovative, adjustable mounting system is highly stable. The rack is made of stainless chrome steel in stress areas and has a durable powder-coated finish. Thanks to the Y-Rack's integrated height adjustment, the center of gravity of the luggage can be optimally adjusted. There are also two threaded eyelets on the side struts for bottle or accessory mounts. These are also perfectly suited for the KLICKfix mount included in our Mini-Pack 06.

Alignment & Center of Gravity - Using a spirit level, you can adjust the angle of the rack platform to a maximum of -12° or align it parallel to the ground. Then bend the aluminum mounting struts into the desired shape for attachment to the seat stays.

Installation & Fork Mounting - To mount the Y-Rack on a fork, the fork must be equipped with threaded rack mounts near the dropouts and a central steerer tube hole. All Tubus/Racktime accessories are also compatible with Speck Gear racks. Your local bike shop will be happy to assist you with installation. Any questions? Go directly to the FAQ.

- Article on BIKEPACKING.COM
- Review of TRIANGLE OF GRAVEL
- Review of TORSTEN FRANK
- Article on BATTICUORE.CH

Specifications

Color: Matte black
Size: 12 x 31 x h34.5–37.5 cm (width x length x height)
Tube diameter: 10 mm

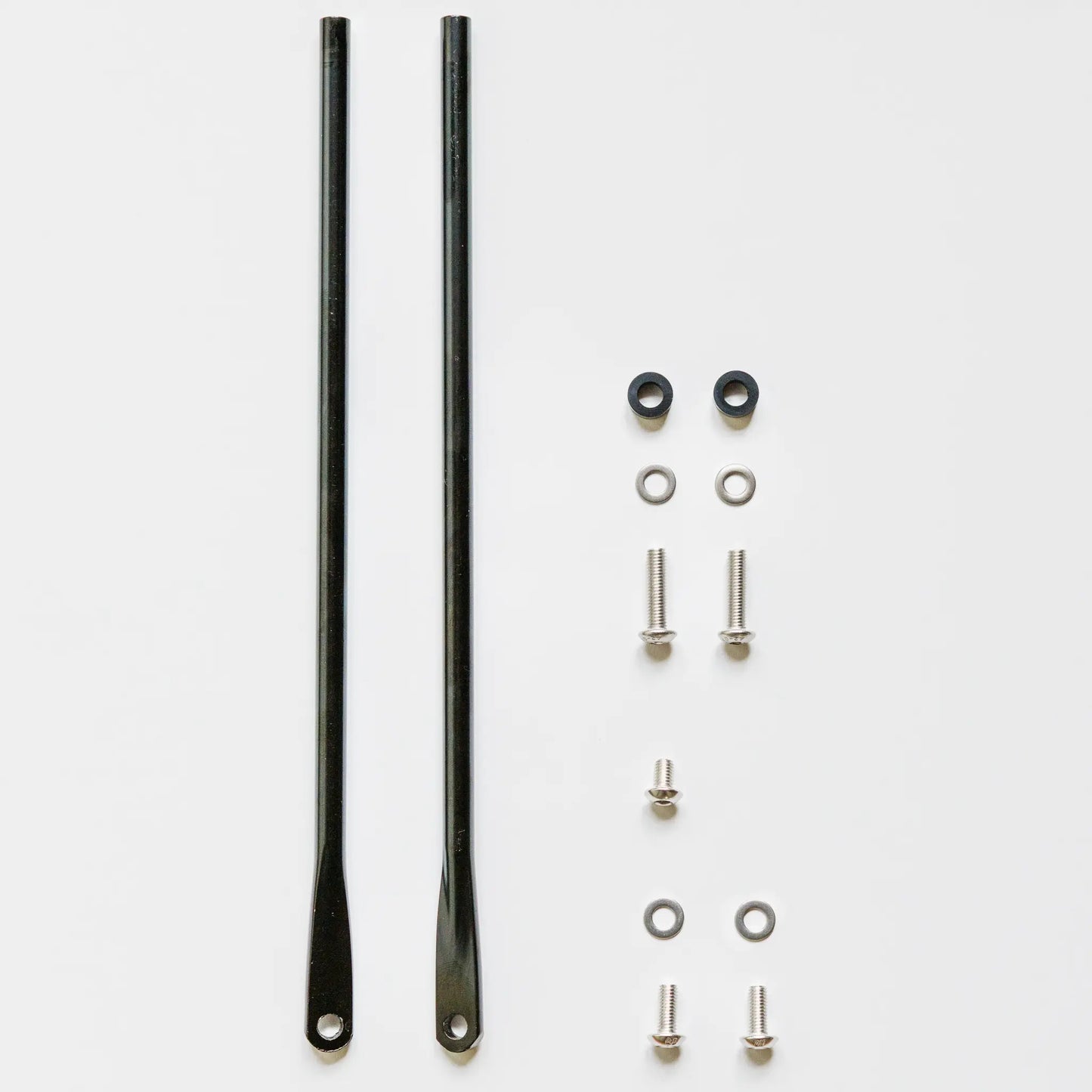

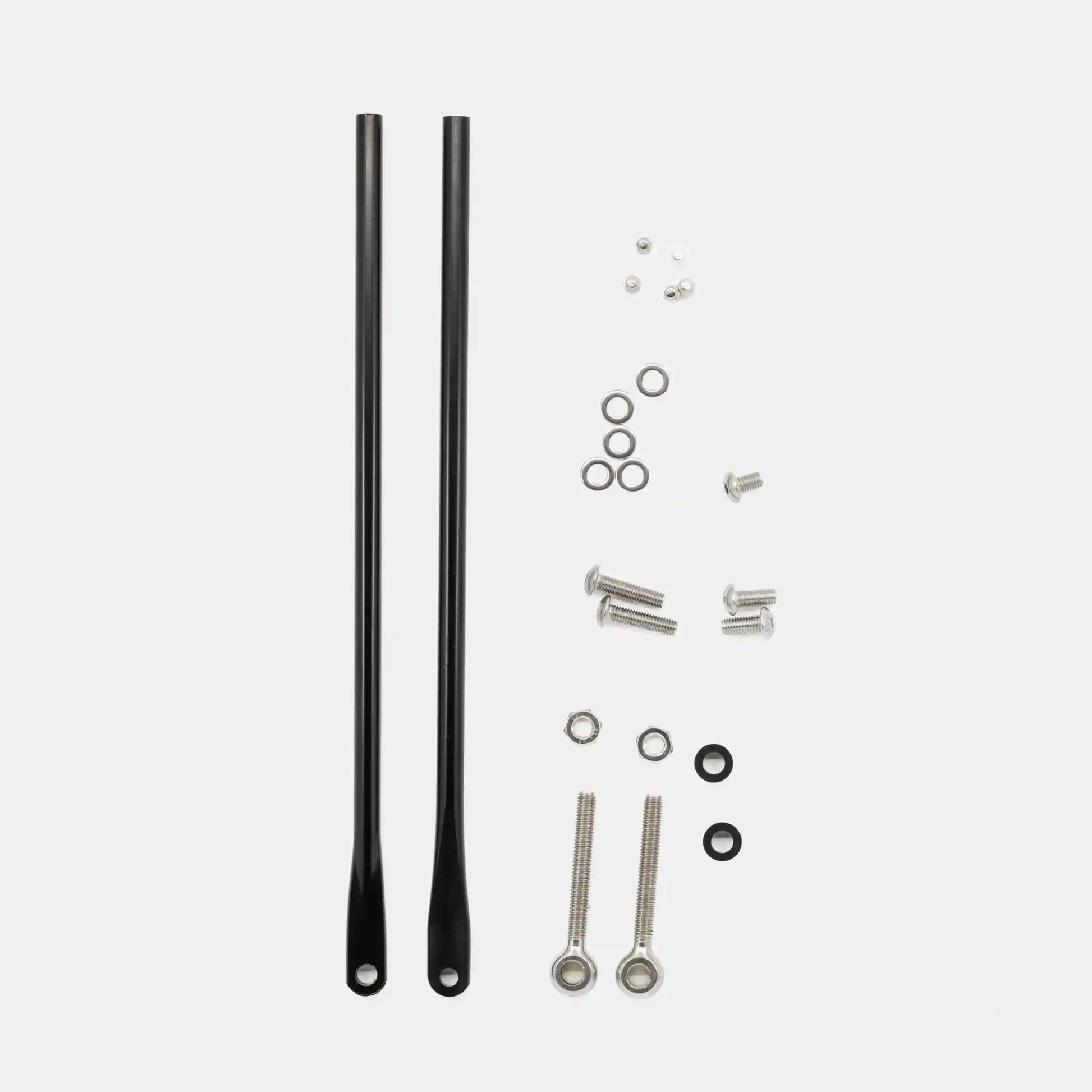

Weight: 465 g (additional fastening material 83 g)
Payload: 22 kg/48 lbs (tested with 36 kg/79 lbs)
Threaded eyelets: Maximum load with two screws 3 kg
Tire width: up to 29 x 3.0" (75-622) without mudguard
Wheelbase: 150–180 mm (5.9–7.1")
Mudguard assembly: possible

Download: Y-Rack assembly instructions

Compatibility

The Y-Rack is designed to be compatible with most bicycle frames that have the appropriate mounting points. Make sure your frame is suitable for installation. If you are unsure, please contact your bicycle manufacturer or take it to your bike shop to check compatibility. Your frame should be equipped with rack eyelets on the dropouts and upper seat stays. The Y-Rack is designed to mount on frames with dropouts that are 150 to 180 mm (5.9–7.1") wide.

Some frames do not have threaded eyelets on the dropouts and/or seat stays. In this case, you can use our seatstay pucks, the Tubus thru-axle adapter, or a seatpost clamp with a rack mount (such as the Bontrager Clamp-Fix), as well as the Tubus clamp adapter set. The latter is suitable exclusively for metal frames. The versions with seatstay pucks or thru-axle adapters and a rack mount on the seatpost clamp are also suitable for carbon frames, provided that the respective frame specifications are observed. On full-suspension bikes, the seatstay pucks can be used on the swingarm at any mounting point. Other manufacturers that offer compatible thru-axle adapters (M5 internal thread) and mounting pucks include Topeak (UDH-compatible and Old Man Mountain/Robert Axles. To mount the rack on the axle, you’ll need our Y-Rack thru-axle kit with the longer eye bolts. If you have any questions, your trusted bike shop can certainly help you.

Note: All Tubus/Racktime accessories also work with Speck Gear racks.

Warnings

Risk of injury due to incorrectly attached products: Check that the product is securely attached before riding.
Risk of injury due to damage to the rack when transporting people and attaching a trailer: Do not transport people or attach a trailer to the rack.
Risk of injury due to material breakage due to overloading: Do not exceed the maximum load of 22 kg (48 lbs) total and a maximum of 11 kg (24 lbs) per side. If necessary, weigh the load to ensure that the maximum load is not exceeded.
Risk of injury due to insufficient clearance between the rack and the tire: The clearance between the rack and the tire must be at least 20 mm. Check the clearance after installation.
