Y-Rack Thru-Axle Kit

• Installation of the Y-Rack on a thru-axle
• 30 mm foot extension
• 38–40.5 cm installation height from the Y-Rack

Installation – Turn the M6 lock nuts onto the new eye bolts and screw them onto the base of the rack. You can then fine-tune the height of the rack using the eye bolts. When assembling, make sure that the rack is 20 mm above the highest point of the tire. Important: At least 10 mm of the eye bolt thread must remain in the rack bushing. Still have questions? Go directly to the FAQ.

Size:M6 x 80 mm
Mounting height:38–40.5 cm

With the help of a tubus thru-axle adapter and a seat clamp with a rack mount on the seat tube (Bontrager Clamp-Fix), the Y-Rack is also suitable for carbon frames, taking into account the frame specifications. Other manufacturers that offer compatible thru-axle adapters (M5 internal thread) are Topeak (UDH-compatible) and Old Man Mountain/Robert Axles. If you have any questions, your trusted bike dealer can certainly help you.

• Risk of injury due to improper assembly: When assembling, ensure that at least 10 mm of the eyebolt thread remains screwed into the rack's bush. Use the M6 self-locking nuts as specified. Tighten all connections to the recommended torque and check them after the first few kilometers as well as before each ride.
• Disclaimer Regarding Improper Use: We assume no liability for damages resulting from exceeding the weight limit, improper installation, or improper use. As the user, you are personally responsible for ensuring safe installation and proper use.

Manufacturer: Speck Gear, Via Carnella 3, CH-7610 Soglio, speckgear.com

EU Rep: EAS Europe OU, Mustamäe tee 50, EE-10621 Tallinn, easproject.com

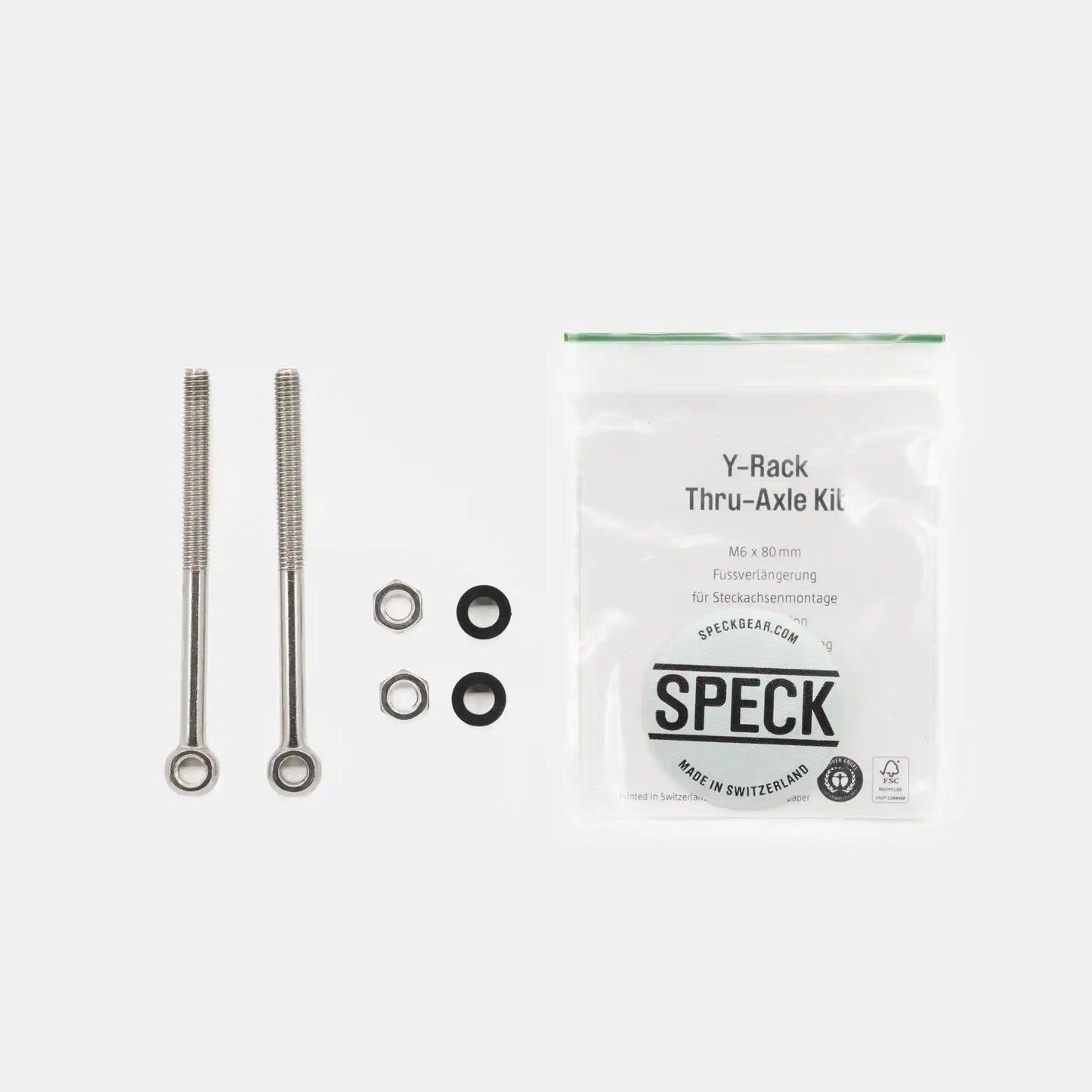

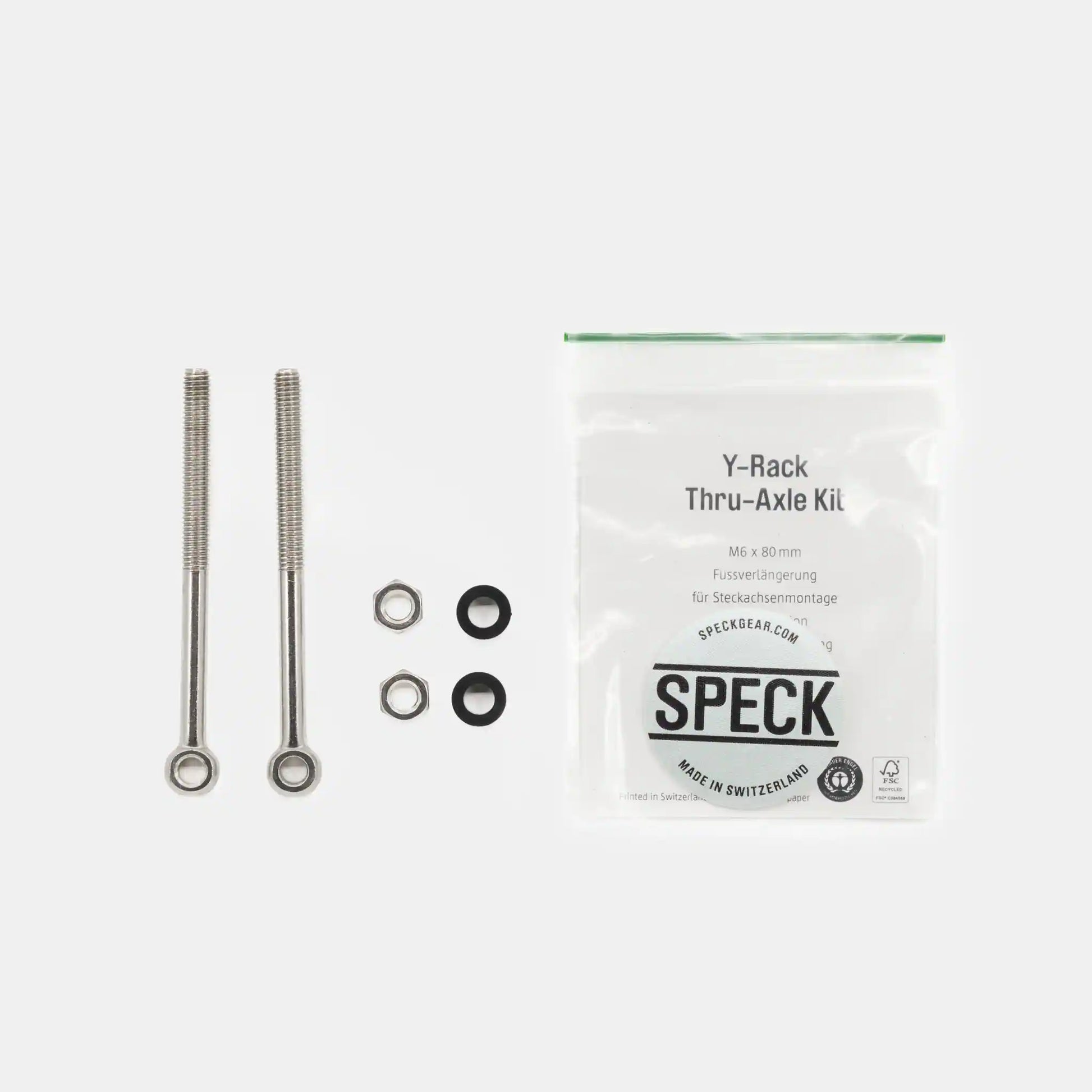

• 2 ABS spacers, 5 mm
• 2 stainless steel eye bolts, M6 x 80 mm
• 2 stainless steel lock nuts, M6
• Assembly instructions
